Animation Dev Tool (Open Source)

[ian`]

Free - You may use the contents of this plugin however you like without giving credit.

!

Message from: ian`

Since this plugin is open source, please do not commercialize or claim this plugin as yourself without any attempt to create a new one. This source of plugins is only for those of you who learn about lua and create masterpieces with it. All results of light definitions or animations in json array format from this plugin is free, you can use without adding any credit to me. Please note, this plugin requires at least version 1.9.37.

Please download the latest version of this plugin from the plugin store.

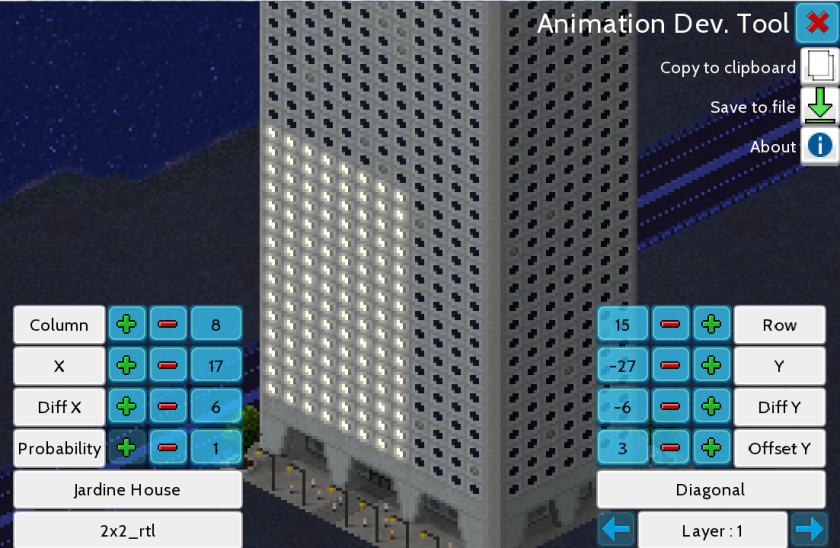

This plugin can help to create massive light definitions and other animations. Also this plugin is open source, so it can be helpful to provide some examples of usage of lua especially for this game.

Dummy.lua

Code: Select all    Reset

-- prevent the draft loaded if the TheoTown version is not supported
-- only for plugins that published outside plugin store
if Runtime.getVersionCode() >= 1937 then
  -- create a dummy drafts
  -- the drafts will be added while init
  for i=1, 8 do
    Draft.append([[
        [
          {
            "id": "$dummy]]..i..[[",
            "type": "award",
            "title": "Dummy size ]]..i..[[ x ]]..i..[[",
            "category": "$dummyfolder00",
            "width": ]]..i..[[,
            "height": ]]..i..[[,
            "frames": [{"bmp": "dummy_frames.png"}],
            "script": "main.lua",
            "draw ground": true,
            "max count": 1,
            "build time": 0
          }
        ]
      ]]
    )
  end
end

-- dialog to select hidden draft
-- the draft only can be selected with this tool
local function showDraftDialog()
  local dialog = GUI.createDialog{
    w = 256,
    h = 256,
    title = 'Select Building Size'
  }
  local listBox = dialog.content:addListBox{}
  for i=1, 8 do
    local layout = listBox:addLayout{h=26,spacing=1}
    local label = layout:getFirstPart():addLabel{
      w = -26,
      text = Draft.getDraft('$dummy'..i):getTitle()
    }
    local button = layout:getLastPart():addButton{
      w = 0,
      icon = Icon.BUILD,
      onClick = function()
        City.createDraftDrawer('$dummy'..i).select()
        dialog.close()
      end
    }
  end
end

-- function to close the build mode and show the dialog
-- another function to prevent the dialog show
-- when the draft has been built
function script:event(x,y,level,event)
  if event == Script.EVENT_TOOL_ENTER then
    GUI.get'cmdCloseTool':click()
    -- prevent the funtion to be called and show an error message
    if Runtime.getVersionCode() >= 1937 then
      local draft = Array()
      for i=1, 8 do
        draft:add(City.countBuildings(Draft.getDraft('$dummy'..i)))
      end
      if draft:contains(1) then
        Debug.toast('Please remove the last building first')
      else
        showDraftDialog()
      end
    else
      Debug.toast('TheoTown version is not supported')
    end
  end
end

Lua editor

Run

Output: Select all

...

main.lua

Code: Select all    Reset

local activeLayer = 1
local buildingId = 'buildingId'
local layer = Array{Array{1,'animationId',1,1,1,1,0,0,0,1}} -- Array with contents
local temp = {} -- Empty table
local toDisplay = {} -- Empty table
local toFile = Array() -- Empty array

-- create a table to store animation id from user
local function userAnimationId()
  return Util.optStorage(TheoTown.getStorage(), 'userAnimationId')
end

-- functions to facilitate access to get and set values in nested arrays
-- recommended for values that is stored on child table of table
local function getDirection(index)
  local index = index or activeLayer
  return layer[index][1]
end

local function setDirection(newState)
  layer[activeLayer][1] = newState
end

local function getAnimationId(index)
  local index = index or activeLayer
  return layer[index][2]
end

local function setAnimationId(newState)
  layer[activeLayer][2] = newState
end

local function getAbsX(index)
  local index = index or activeLayer
  return layer[index][3]
end

local function setAbsX(newState)
  layer[activeLayer][3] = newState
end

local function getAbsY(index)
  local index = index or activeLayer
  return layer[index][4]
end

local function setAbsY(newState)
  layer[activeLayer][4] = newState
end

local function getColumn(index)
  local index = index or activeLayer
  return layer[index][5]
end

local function setColumn(newState)
  layer[activeLayer][5] = newState
end

local function getRow(index)
  local index = index or activeLayer
  return layer[index][6]
end

local function setRow(newState)
  layer[activeLayer][6] = newState
end

local function getDiffX(index)
  local index = index or activeLayer
  return layer[index][7]
end

local function setDiffX(newState)
  layer[activeLayer][7] = newState
end

local function getDiffY(index)
  local index = index or activeLayer
  return layer[index][8]
end

local function setDiffY(newState)
  layer[activeLayer][8] = newState
end

local function getOffsetY(index)
  local index = index or activeLayer
  return layer[index][9]
end

local function setOffsetY(newState)
  layer[activeLayer][9] = newState
end

local function getProbability(index)
  local index = index or activeLayer
  return layer[index][10]
end

local function setProbability(newState)
  layer[activeLayer][10] = newState
end

Lua editor

Run

Output: Select all

...

for the full version of main.lua code, you can download this plugin on zip format at bellow or visit github.

main.json

Code: Select all    Reset

[
  {
    "id": "$dummyfolder00",
    "type": "category",
    "frames": [null],
    "hidden": "true"
  },
  {
    "id": "$dummy_generator_00",
    "title": "Animation Dev. Tool",
    "text": "Attach a night lights or animation to your plugin easily.",
    "author": "ian`",
    "type": "tool",
    "script": "dummy.lua"
  }
]

JSON checker

Check

Output: Select all

...

The path of file results from this plugin is in '/TheoTown/plugins/Animation Dev Tool/filename.txt' and also you can use clipboard and paste the code on your plugin code. However, clipboard has size limitations, so may causes an errors

animation_dev_tool.zip

Edited : - Fix bug for version < 1.9.42

(7.78 KiB) Downloaded 1349 times

[Hadestia]

Ughh i want to create text box that can only input is integer like that


Btw great Job 100%

[michaelbello123]

I'm slightly learning lua
I know some lua
Like io write, print, etc
And this will be a lot of help for me
Thank you for sharing

[michaelbello123]

Does this lua remove the current gui ingame?

[THEMAX]

This tool is a game changer for plugin creators, gg.

[Mlgisawsome02]

just set a new standard for lua tool plugins

[ajimaul]

Can you add more id of the lamp in next update sir ??
More lamp color and size...
Ohh in game lamp id 4x4l2 error can't found after i apply to in the building

[ian`]

Can you add more id of the lamp in next update sir ??
More lamp color and size...
Ohh in-game lamp id 4x4l2 error can't found after i apply to in the building

actually, all the light id's those i added are already in the game by default, who want to use it only need the id without need another frame. You can add your own lights or animations.

for 4x4l2 there was no problem when i tried it, try to delete the layer and select the light again.

[ajimaul]

Can you add more id of the lamp in next update sir ??
More lamp color and size...
Ohh in-game lamp id 4x4l2 error can't found after i apply to in the building

actually, all the light id's those i added are already in the game by default, who want to use it only need the id without need another frame. You can add your own lights or animations.

for 4x4l2 there was no problem when i tried it, try to delete the layer and select the light again.

How do I add my lamp id, i try to add id but cant display anything lol Sorry for many questions sir. I am a newbie

[WLZZ]

Where can I get the ID of the building?

[Lalulali]

Can you add more id of the lamp in next update sir ??
More lamp color and size...
Ohh in-game lamp id 4x4l2 error can't found after i apply to in the building

actually, all the light id's those i added are already in the game by default, who want to use it only need the id without need another frame. You can add your own lights or animations.

for 4x4l2 there was no problem when i tried it, try to delete the layer and select the light again.

How do I add my lamp id, i try to add id but cant display anything lol Sorry for many questions sir. I am a newbie

if you want to use your own night animation frame you need to make your json looks llike this

Code: Select all    Reset

[
    {
	"id":"light003",
	"type":"animation",
	"frames":[{"bmp": "light 3.png"}],
	"override": true,
	"light": true,
	"light switching": true
    },
    {
	"id":"light004",
	"type":"animation",
	"frames":[{"bmp": "light 4.png"}],
	"override": true,
	"light": true,
	"light switching": true
    },

    {
        "id": "$HuMed1",
        "type": "residential",
        "author": "lalulali",
        "width": 1,
        "height": 1,
        "frames": [{"bmp": "HuMed 1.png"}],
	"animation":	[{"id":"light003", "x": 21, "y": -5},
			{"id":"light004", "x": 18, "y": -11}],
	"animation night light probability": 1.0,
	"smoke": [{"id": "$smoke07", "x":10, "y":-19}],
        "level": 2,
        "people": 5,
        "title": "Human Residence",
        "text": "Human Residence Type 5 For Medium People",
        "price": 20,
        "bulldoze price": 35,
        "build time": 8
    }
]

JSON checker

Check

Output: Select all

...

the first 2 definition is for my night animation and the last is your main json, dont forget to provide the frame within your folder, for "x" and "y" value you could use animation dev tools plugin to find it and then copy paste the value into your plugin. i'm not 100% sure that your "x" and "y" value will put on the right place you want so you need to check it manually

[ajimaul]

actually, all the light id's those i added are already in the game by default, who want to use it only need the id without need another frame. You can add your own lights or animations.

for 4x4l2 there was no problem when i tried it, try to delete the layer and select the light again.

How do I add my lamp id, i try to add id but cant display anything lol Sorry for many questions sir. I am a newbie

if you want to use your own night animation frame you need to make your json looks llike this

Code: Select all    Reset

[
    {
	"id":"light003",
	"type":"animation",
	"frames":[{"bmp": "light 3.png"}],
	"override": true,
	"light": true,
	"light switching": true
    },
    {
	"id":"light004",
	"type":"animation",
	"frames":[{"bmp": "light 4.png"}],
	"override": true,
	"light": true,
	"light switching": true
    },

    {
        "id": "$HuMed1",
        "type": "residential",
        "author": "lalulali",
        "width": 1,
        "height": 1,
        "frames": [{"bmp": "HuMed 1.png"}],
	"animation":	[{"id":"light003", "x": 21, "y": -5},
			{"id":"light004", "x": 18, "y": -11}],
	"animation night light probability": 1.0,
	"smoke": [{"id": "$smoke07", "x":10, "y":-19}],
        "level": 2,
        "people": 5,
        "title": "Human Residence",
        "text": "Human Residence Type 5 For Medium People",
        "price": 20,
        "bulldoze price": 35,
        "build time": 8
    }
]

JSON checker

Check

Output: Select all

...

the first 2 definition is for my night animation and the last is your main json, dont forget to provide the frame within your folder, for "x" and "y" value you could use animation dev tools plugin to find it and then copy paste the value into your plugin. i'm not 100% sure that your "x" and "y" value will put on the right place you want so you need to check it manually

I Have done sir

[Bearbear76]

That looks cool.

[Designer Anthony]

How am I supposed to save space by using the animation tool for future plugins? How?

[Kamikazi]

How am I supposed to save space by using the animation tool for future plugins? How?

Maybe this will help
viewtopic.php?f=42&t=12958

The trick thay it's use is that there is just a base, a roof and a part that is going to be repeated. You just add a base, then using animation, you add and repeat the parts as an animation.

[SRBAPH]

So... Theotown also using english language of lua like roblox... Now i'm just gonna do is to make a UI

[TheFennekin]

Thanks to Kulche I found this Definetely will help a lot!

[MeUsic]

I found the tool in the game, but I can't understand how to use it, even in the slightest. I have rhe model and lighting layer ready, and I just want to implement the night animation in the game. Can someone please explain to me how to do it?
