[Zman The Man]

That car is playing GTA IV but the pedestrians are wiser NOT to walk

[CommanderABab]

More disturbing is that you are overriding the default fire truck which fights fires and giving it only the ability to act as an ambulance.



[TheFennekin]

I also got this issue in my drifitng AE86 and other self made cars I did but just move each car frame up and down and try to see if it fits the road nicely. Basically just trial and error.

[Zoll]

That car is playing GTA IV but the pedestrians are wiser NOT to walk

Ye, actually.. the truck went for its safety.

More disturbing is that you are overriding the default fire truck which fights fires and giving it only the ability to act as an ambulance.

What is the fifth frame of green car represent?
I spaced it 2 pixel on purpose, is it bad?

Anyway, I offset the truck by using the "v2" (I don't remember what its actually for) and it worked but I concern this is not the correct way.

Code: Select all    Reset

"frames":[{"bmp":"JBPM_Scania.png","count":4,"h":22,"w":23}],
"id":"$carfirebrigade00",
"meta":{"tags":{"medic":{},"swat"{}}},
"speed":1.1,
"type":"car",
"v2":[-2,-2,-2,-2],
"override":true

JSON checker

Check

Output: Select all

...

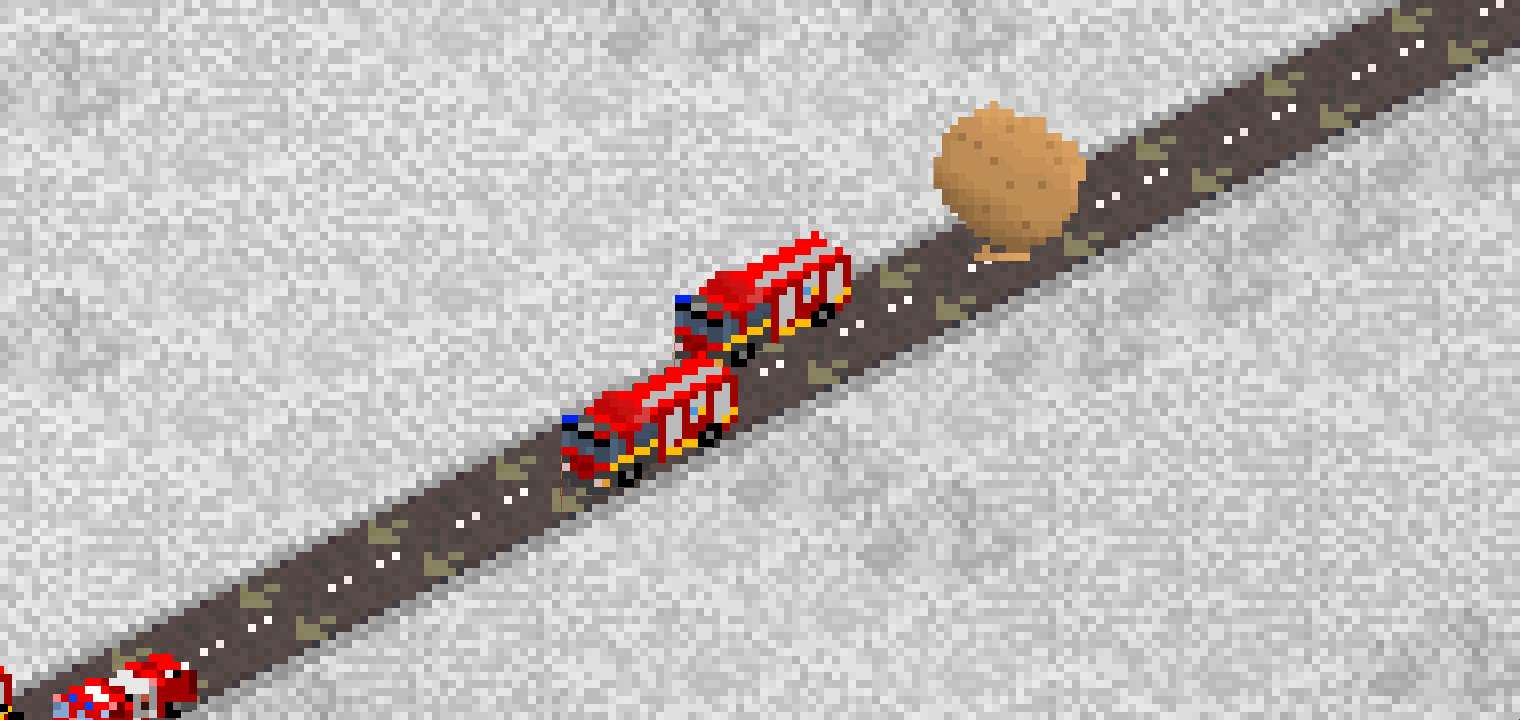

you see no potato

[CommanderABab]

Lol, I see a potato.

The fifth frame is only an error check.

[Lakan Haraya]

Diagonal oriented Cars is here... v1966

[TheFennekin]

Diagonal oriented Cars is here... v1966

Wait... what?

[Yakka]

Where is Diagonal car tutorial?

[JustAnyone]

Diagonal cars just use 8 instead of 4 frames.
4 for diagonal axis and 4 normally.

All you just need to do is specify "frames per variant": 8 attribute for the car drafts.

The following example is how diagonal firetrucks are implemented

Code: Select all    Reset

[{
    "id":"$carfirebrigade00",
    "type":"car",
    "frames":[
      {"x":512,"y":657,"w":32,"h":18,"count":4},{"x": 128,"y": 365,"w": 32,"h": 19,"count": 4,"offset y": 3072} // This array has 8 frames
    ],
    "frames per variant": 8, // We let the game know that we use 8 frames per variant, otherwise it would treat 8 frames as 2 separate variants
    "animation":[
      {
        "id":"$animationcaralertlights00",
        "pos":[16,-10, 10,-4, -4,-9, 4,-13],
        "important":true
      },
      {
        "id":"$animationcaralertlights00",
        "pos":[18,-9, 12,-5, -2,-8, 6,-14],
        "important":true
      },
      {
        "id": "carlight_red",
        "pos": [11, 4, 0, 0, 0, 0, 25, 1],
        "frames": [0, 3]
      },
      {
        "id": "carlight_red",
        "pos": [13, 5, 0, 0, 0, 0, 27, 0],
        "frames": [0, 3]
      },
      {
        "id": "carlight_yellow",
        "pos": [0, 0, 19, 5, 3, 0, 0, 0],
        "frames": [1, 2]
      },
      {
        "id": "carlight_yellow",
        "pos": [0, 0, 21, 4, 5, 1, 0, 0],
        "frames": [1, 2]
      }
    ],
    "flag military":true,
    "flag airport":true,
    "flag emergency": true,
    "chargeable": false,
    "meta":{"tags":{"fire brigade":{}}}
  }]

JSON checker

Check

Output: Select all

...

In regard to the order of frames it works the same like before for the first 4 frames (which will have different order when v2 is set to true). The next four, diagonal frames are always ordered like this:


[Yakka]

Diagonal cars just use 8 instead of 4 frames.
4 for diagonal axis and 4 normally.

All you just need to do is specify "frames per variant": 8 attribute for the car drafts.

The following example is how diagonal firetrucks are implemented

Should the frame is same size as non diagonal cars one?
I mean something like this:

BB301 GL DIA.png (608 Bytes) Viewed 25307 times

BB301 GL.png (1.45 KiB) Viewed 25307 times

Show

note

The image is sample from Indonesia renewal pack,which also my testing plugin before applying to real Indonesia renewal pack plug-in, please credit me if you want to reuse the image

[yusuf8a684]

I think diagonal should be longer

[Yakka]

Can anyone provide an example for very long vehicle,like more than 22pixel in width,in this case i need a example for 1 tile long

[Patchouli Knowledge]

If count of car’s frame is 8,how to How do I draw a picture in this case？

[THEMAX]

If I want to add night animations to the diagonal variants of my trains, can I still use a v2 night animation frame like I did it before except it would be for 8 different frames or does it only work with 2 or 4 rotations ?

@JustAnyone @Lobby

[Wepf]

WTH(What the heck) is

Code: Select all

"v2":true

[Kulche]

WTH(What the heck) is

Code: Select all

"v2":true

Please read the tutorial.

If I want to add night animations to the diagonal variants of my trains, can I still use a v2 night animation frame like I did it before except it would be for 8 different frames or does it only work with 2 or 4 rotations ?

@JustAnyone @Lobby

Diagonal cars have 8 frames, so you would add animations to each of them, so probably yes.

[THEMAX]

WTH(What the heck) is

Code: Select all

"v2":true

Please read the tutorial.

If I want to add night animations to the diagonal variants of my trains, can I still use a v2 night animation frame like I did it before except it would be for 8 different frames or does it only work with 2 or 4 rotations ?

@JustAnyone @Lobby

Diagonal cars have 8 frames, so you would add animations to each of them, so probably yes.

Will do some testing then.

[THEMAX]

WTH(What the heck) is

Code: Select all

"v2":true

Please read the tutorial.

If I want to add night animations to the diagonal variants of my trains, can I still use a v2 night animation frame like I did it before except it would be for 8 different frames or does it only work with 2 or 4 rotations ?

@JustAnyone @Lobby

Diagonal cars have 8 frames, so you would add animations to each of them, so probably yes.

I have done some tests and it indeed does not work, but with the update coming, it's now a requirement imo, and I cant afford the time to modify all my trains texture.

[THEMAX]

So essentially, I would like to be able to do this :



And be able to have both over each ones, like it is possible with a json like that :

Code: Select all    Reset

[
	{
		"id": "$Themax_TrainNight_Real_33_Innovia_200_LasVegas_End",
		"type": "animation",
		"light": true,
		"light switching": true,
		"frames": [
			{
				"bmp": "Themax_TrainNight_Real_33_Innovia_200_LasVegas_End.png",
				"count": 4,
				"h": 19,
				"w": 21
			}
		],
		"rotation aware": true
	},
	{
		"author": "Themax",
		"flag normal": false,
		"flag train": false,
		"flag monorail": true,
		"frames": [
			{
				"bmp": "Themax_Train_Real_33_Innovia_200_LasVegas_End.png",
				"count": 4,
				"h": 19,
				"w": 21
			}
		],
		"id": "$Themax_Train_Real_33_Innovia_200_LasVegas_End",
		"animation": [{"id": "$Themax_TrainNight_Real_33_Innovia_200_LasVegas_End", "x":0,"y":-11}],
		"speed": 2.5,
		"type": "car",
		"v2": true
	}
]

JSON checker

Check

Output: Select all

...

Except with a vehicle with 8 parts :

Cadillac_CT6 White.png (969 Bytes) Viewed 24609 times


Code: Select all    Reset

[
	{
		"id": "$Themax_CarNight_Real_1_Cadillac_CT6",
		"type": "animation",
		"light": true,
		"light switching": true,
		"frames": [
			{
				"bmp": "Themax_CarNight_Real_1_Cadillac_CT6.png",
				"count": 8,
				"h": 10,
				"w": 15
			}
		],
		"rotation aware": true
	},
	{
		"author": "Themax",
		"flag pkw": true,
		"flag normal": false,
		"frames": [
			{
				"bmp": "Themax_Car_Real_1_Cadillac_CT6.png",
				"count": 8,
				"h": 10,
				"w": 15
			}
		],
		"id": "$Themax_Car_Real_1_Cadillac_CT6",
		"animation": [{"id": "$Themax_CarNight_Real_1_Cadillac_CT6", "x":0,"y":-2}],
		"speed": 2.5,
		"frames per variant": 8,
		"type": "car",
		"v2": true
	}
]

JSON checker

Check

Output: Select all

...

This would truly be of great help and reduce the workload BY A LOT also allowing me to update the railroad expansion plugin faster.

[Yakka]

So essentially, I would like to be able to do this :
Themax_Train_Real_33_Bombardier_Innovia_200_LasVegas_End.pngThemax_TrainNight_Real_33_Bombardier_Innovia_200_LasVegas_End.png

This would truly be of great help and reduce the workload BY A LOT also allowing me to update the railroad expansion plugin faster.

I Agree.
